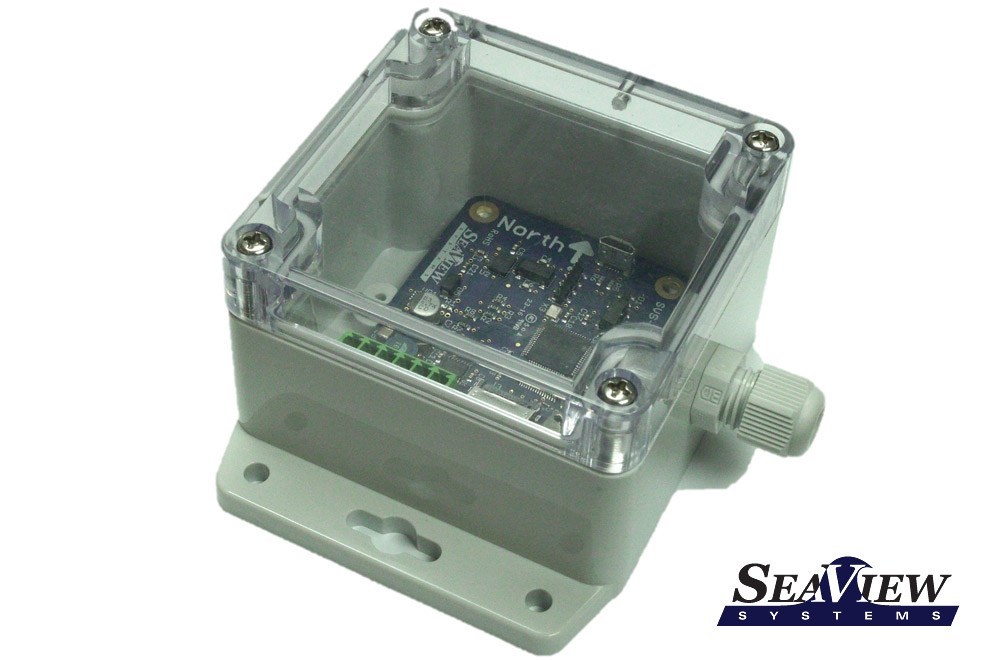

The SVS-603 Wave Sensor is a highly accurate MEMS-based sensor that reports heading, wave height, wave period and wave direction via RS-232 or logs to its on-board data logger. The SVS-603 represents a new generation in accuracy and completeness for wave sensing electronics whose features include:
Very low power consumption; fits the smallest power budget
Very small footprint; sold packaged or as bare PCB
MEMS sensors account for 3-D motion, rotation and compass heading in all dimensions to cover nine degrees of freedom
Sophisticated onboard electronics provide near-real-time wave statistics
On-board temperature compensation for highest accuracy
On-board data logger capable of logging as much as ten years of wave data
Easy configuration to match your exact sensing rate and output requirements
Readily interfaced with transmitter using NMEA or other configurable data output
Outputs “First-5” Fourier wave coefficients for NOAA compliant data logging/transmission
The SVS-603 can be used to replace existing sensors, to upgrade existing buoys, or to add wave sensing capabilities to even the most compact buoys. Among the wave data that are available as outputs from the sensor are:
l Heading in degrees
l Significant wave height in meters (Hs)
l Wave period in seconds
l Wave direction in degrees from north
l Maximum wave height (Hmax)
l Wave period at Hmax
l Full wave spectrum (raw or processed)
l Custom outputs as required
Other outputs or data manipulations can be incorporated via firmware updates or through calculations on the available data stream.
